Ozone Generator Photo and Electrode Schematic

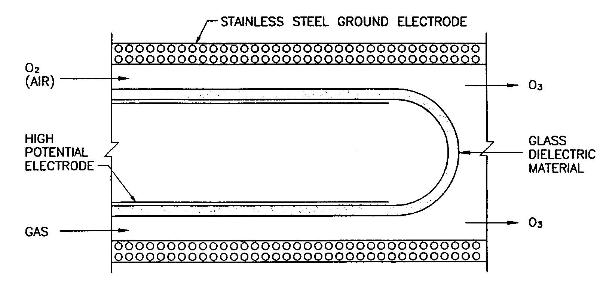

The schematic illustrates the positioning of the electrodes in a typical horizontal tube type corona discharge ozone
generators:
As illustrated in the drawing, the gas flow between the glass/ceramic dielectric and the stainless steel ground electrode.
In this case, the drawing illustrates oxygen flow, but in many systems air is employed. The corona or plasma is formed in
this space creating the ozone. Cooling water flows on the opposite side of the ground electrode.

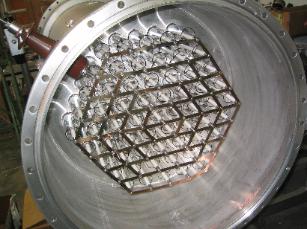

The next photo shows a multi tube arrangement based on the design shown in the schematic:

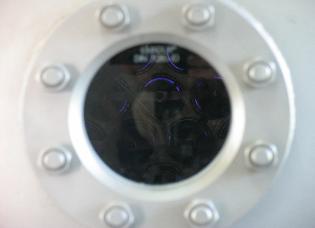

The photo on the right looks into an operating ozone generator. The blue glow around the tubes is the actual plasma or
corona where the ozone is forming. Both photos were the TPF series ozone generators supplied by Spartan
Environmental Technologies.
The schematic illustrates the positioning of the electrodes in a typical horizontal tube type corona discharge ozone
generators:
As illustrated in the drawing, the gas flow between the glass/ceramic dielectric and the stainless steel ground electrode.
In this case, the drawing illustrates oxygen flow, but in many systems air is employed. The corona or plasma is formed in
this space creating the ozone. Cooling water flows on the opposite side of the ground electrode.
The next photo shows a multi tube arrangement based on the design shown in the schematic:
The photo on the right looks into an operating ozone generator. The blue glow around the tubes is the actual plasma or
corona where the ozone is forming. Both photos were the TPF series ozone generators supplied by Spartan
Environmental Technologies.
